-25℃ Upright Deep Freezer – 60L

Short Description:

Application:
-25 °C Low Temperature Upright Freezer is mainly in order to meet the medical and scientific research and industrial preparation of cold storage under normal circumstances demand. It has large capacity, saving space and precise temperature control, temperature stability, quick cooling, mainly used in the sample access frequently, sample large capacity, users of laboratory space is relatively small.

Features

Specification

Detail

Product Tags

Temperature Control

  • Microprocessor control
  • Temperature range: -10°C~-25°C;

Safety Control

  • Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery. Over temperature alarm system, set the alarm temperature as requirements;

Refrigeration System

  • Highly efficient famous brand compressor and fan to ensure a high performance.
  • Optimized refrigeration technology, with low noise

Ergonomic Design

  • Safety door lock
  • Pressure-balanced port design, easy to open the door;

Performance Curve

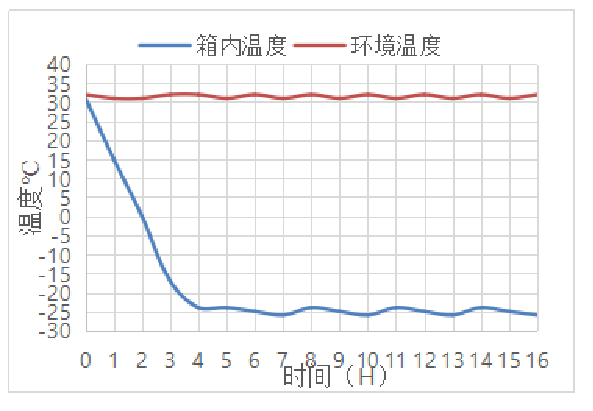

Cooling curve of empty box at 32°C ambient temperature

Performance Curve


  • Previous:
  • Next:

  • Model KYD60F
    Technical Data Cabinet Type Desktop
    Climate Class N
    Cooling Type Direct cooling
    Defrost Mode Manual
    Refrigerant HC, R600a
    Performance Cooling performance(°C) -25
    Temperature Range(°C)  -10~-25
    Control Controller Microprocessor
    Display LED
    Material Interior Galvanized steel powder coating
    Exterior Galvanized steel powder coating
    Electrical Data Power Supply(V/Hz) 220/50
    Power(W) 65
    Dimensions Capacity(L) 60
    Net/Gross Weight(approx) 40/45 (kg)
    Interior Dimensions(W*D*H) 410×450×420(mm)
    Exterior Dimensions(W*D*H) 510×560×655(mm)
    Packing Dimensions(W*D*H) 570×620×760 (mm)
    Functions High/Low Temperature Y
    Remote Alarm Y
    Power Failure Y
    Low Battery Y
    Door Ajar Y
    Inner LED light Y
    Sensor Error Y
    presure balance port N/A
    Lockage Y
    Accessories Caster N/A
    Foot Y
    Test Hole Y
    Shelves/Inner Doors 2/-
    USB Interface Y
    Temperature Recorder Y
     ef Well-known brands of cooling system
    Use well-known compressor with good quality, configuring high-performance fan and filter to ensure cooling system performance.
     optional Safety Control System
    A safety control system under buzzer, digital flashing, includes high/low temperature, sensor failure, door opening alarm.

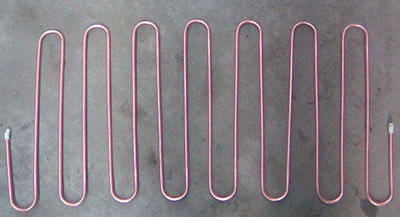

     dvs 100% Copper pipe evaporator
    The cooling pipe of evaporator is made by copper, to reduce the risk of internal leakage, and keep longer service life.
