-86℃ Vertical ultra low freezer -280L

Short Description:

-86°C ULT Freezer is specially designed for long term storage of various biological products, such as germs, virus, erythrocytes, leukocytes, cutis. It can be installed in institutions including blood banks, hospitals, epidemic prevention services, research institutes and laboratories for electronic and chemical plants, biological engineering institutes and marine fishery companies.




Product Tags

Temperature Control

  • Microprocessor control
  • The inner temperature can be adjustable from -40°C to -86°C, with an increment of 0.1°C

Safety Control

  • Malfunction alarms: high/low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery
  • Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;

Refrigeration System

  • Optimized cascade refrigeration technology, SECOP compressor to reach a high refrigeration performance.

Ergonomic Design

  • Safety door lock

Performance Curve

Performance Curve

  • Previous:
  • Next:

  • Model DW-86L280
    Technical Data Cabinet Type Vertical
    Climate Class N
    Cooling Type Direct cooling
    Defrost Mode Manual
    Refrigerant Hydrocarbon, Mixing
    Performance Cooling performance(℃) -80
    Temperature Range(℃)  -40~-86
    Material Exterior Material Galvanized steel powder coating
    Interior  Material Galvanized steel powder coating
    Insulation Material PUF+VIP
    Dimensions Capacity(L) 280L
    Interior Dimensions(W*D*H) 460x470x1310mm
    Exterior Dimensions(W*D*H) 640x692X1970mm
    Packing Dimensions(W*D*H) 760×770×2050 (mm)
    Thickness of Cabinet Foamed Layer 90mm
    Thickness of Door 90mm
    Capacity for 2 inch boxes 180
    Inner door 2
    Power Supply(V/Hz) 220V/50Hz
    Controller Functions Display Large digital display & adjusting keys
    High/Low Temperature Y
    Hot Condenser Y
    Power Failure Y
    Sensor Error Y
    Low Battery Y
    High Ambient Temp Y
    Alarm mode Sound and light alarm, remote alarm terminal
    Accessories Caster Y
    Test Hole Y
    Shelves(stainless steel) ——
    Chart Temperature Recorder Optional
    Door locking device Y
    Handle Y
    Pressure balance hole Y
    Racks & Boxes Optional
    cs Vacuum Insulation Panels
    Improve the insulation effect effectively and reduce the equipment area.

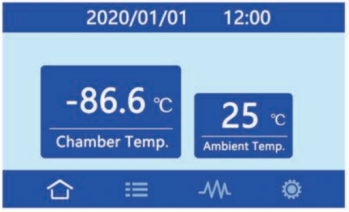

    s Color Touch Screen
    A large LCD touch screen displays with Temperature recorder and USB port are optional.
    rth Easy clean filter
    Easy clean filter to save your cleaning time.
